Pneumatic Torque Multiplers - PneuTorque PTM-72 Series

PTM-72 tools use the same 'twin motor' handle as the PTM-52 but fitted with a durable 72mm gearbox to allow higher torque outputs. The 'twin motor' concept gives the benefit of high run-down speeds while adding very little to the size and weight of the tool.

Fast - 1000 Nm version has a free speed of 140 rpm for rapid bolt run-down.  Light weight - single direction 2000 Nm stall tool weighs just 6.2 kg. Less than 85 dB(A) when under load.  Non impacting - low vibration levels make these tools comfortable and safe to use.

Quick and easy to replace the square drive.  Socket location is aided by the 'Soft Start' trigger control and allows gradual and safe reaction location.

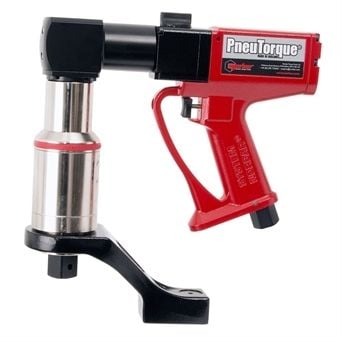

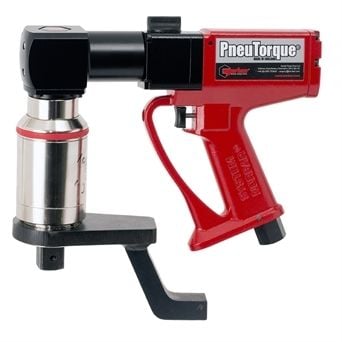

Gearbox can rotate independently from the handle for safety, so that reaction forces are not transmitted back to the operator.  Dual trigger versions reduce the risk of the operator's hands becoming trapped between the reaction bar and reaction point.

Bi-Directional models can also be supplied as Shut-Off versions, with either Internal or External control, with minimum impact on the overall tool size and weight, meaning that a repeatability of +/-2% can be guaranteed.

18102.B06.RA - PTM-72 with Right Angle Gearbox, 1000 N·m, Bi-Directional 18103.B08.RA - PTM-72 with Right Angle Gearbox, 1350 N·m, Bi-Directional 18104.B08.RA - PTM-72 with Right Angle Gearbox, 2000 N·m, Bi-Directional 18102.B06 - PTM-72-1000-B, 1000 N.m, Bi-Directional, Stall, 3-4in

18102.B06.RA -

PTM-72

with Right Angle Gearbox

1000 Nm Bi-Directional

200.0 - 1000.0 Nm

147.0 - 738.0 ft. lbs

18103.B08.RA -

PTM-72

with Right Angle Gearbox

1350 Nm Bi-Directional

270.0 - 1350.0 Nm

200.0 - 1000.0 ft. lbs

18104.B08.RA -

PTM-72

with Right Angle Gearbox

2000 Nm Bi-Directional

400.00 - 2000.00 Nm

295.00 - 1475.00 ft. lbs

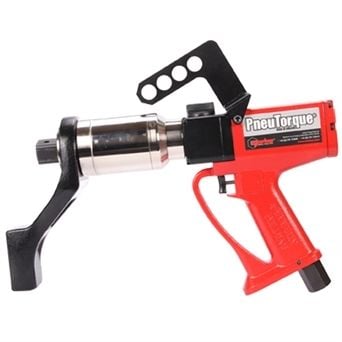

18102.B06 -

PTM-72-1000-B

1000 Nm Bi-Directional

Stall 3/4"

200.0 - 1000.0 Nm

147.0 - 738.0 ft. lbs

18102.F06 - PTM-72-1000-F, 1000 Nm, Forward, Stall, 3/4" 18103.B08 - PTM-72-1350-B, 1350 Nm, Bi-Directional, Stall, 1" 18103.F08 - PTM-72-1350-F, 1350 N.m, Forward, Stall, 1in. 200.0 - 1000.0 lbf·ft 270.0 - 1350.0 Nm 18104.B08 - PTM-72-2000-B, 2000 N.m, Bi-Directional, Stall, 1in. 295.0 - 1475.0 lbf·ft 400.0 - 2000.0 Nm

18102.F06 -

PTM-72-1000-F

1000 Nm Forward

Stall 3/4"

200.0 - 1000.0 Nm

147.0 - 738.0 ft. lbs

18103.B08 -

PTM-72-1350-B

1350 Nm Bi-Directional

Stall 1"

270.0 - 1350.0 Nm

200.0 - 1000.0 ft. lbs

18103.F08 -

PTM-72-1350-F

1350 Nm Forward

Stall 1"

270.0 - 1350.0 Nm

200.0 - 1000.0 ft. lbs
18104.B08 -

PTM-72-2000-B

2000 Nm Bi-Directional

Stall 1"

400.0 - 2000.0 Nm

295.0 - 1475.0 ft. lbs
18104.F08 - PTM-72-2000-F, 2000 Nm, Forward, Stall, 1" 18112.B06 - PTM-72-1000-B-IC, 1000 N.m, Bi-Directional, Shut-Off Internal Control, 3-4in. 147.0 - 738.0 lbf·ft 200.0 - 1000.0 Nm 18113.B08 - PTM-72-1350-B-IC, 1350 N.m, Bi-Directional, Shut-Off Internal Control, 1in. 200.0 - 1000.0 lbf·ft 270.0 - 1350.0 Nm 18114.B08 - PTM-72-2000-B-IC, 2000 N.m, Bi-Directional, Shut-Off Internal Control, 1in. 295.0 - 1475.0 lbf·ft 400.0 - 2000.0 Nm

18104.F08 -

PTM-72-2000-F

2000 Nm Forward

Stall 1"

400.0 - 2000.0 Nm

295.0 - 1475.0 ft. lbs

18112.B06 -

PTM-72-1000-B-IC

1000 Nm Bi-Directional

Shut-Off Internal Control

3/4"

147.00 - 738.00 ft. lbs

200.00 - 1000.00 N·m

18113.B08 -

PTM-72-1350-B-IC

1350 Nm Bi-Directional

Shut-Off Internal Control

1"

200.00 - 1000.00 ft. lbs

270.00 - 1350.00 N·m

18114.B08 -

PTM-72-2000-B-IC

2000 Nm Bi-Directional,

Shut off Internal Control

1"

400.0 - 2000.0 Nm

295.0 - 1475.0 ft. lbs
18122.B06 - PTM-72-1000-B-EC, 1000 Nm, Bi-Directional, Shut-Off External Control, 3/4"          12127.B06 PTM-72-1000-B-IC 1000Nm          18123.B08 - PTM-72-1350-B-EC, 1350 N.m, Bi-Directional, Shut-Off External Control, 1in.

18122.B06 -

PTM-72-1000-B-EC

1000 Nm Bi-Directional

Shut-Off

External Control, 3/4"

200.0 - 1000.0 Nm

147.0 - 738.0 ft. lbs

18127.B06 -

PTM-72-1000-B-IC

1000 Nm Bi-Directional

Angle Control, 3/4"

200.0 - 1000.0 Nm

147.0 - 738.0 ft. lbs



18123.B08 -

PTM-72-1350-B-EC

1350 Nm

Bi-Directional, Shut-Off

External Control, 1"

270.0 - 1350.0 Nm

200.0 - 1000.0 ft. lbs

         18128.B08 - PTM-72-1350-B-IC 18124.B08 - PTM-72-2000-B-EC, 2000 N.m, Bi-Directional, Shut-Off External Control, 1in. 295.0 - 1475.0 lbf·ft 400.0 - 2000.0 Nm        18129.B08 PTM-72-2000-B-IC 2000Nm

18128.B08 -

PTM-72-1350-B-IC

1350 Nm Bi-Directional

Angle Control, 1"

270.0 - 1350.0 Nm

200.0 - 1000.0 ft. lbs

18124.B08 -

PTM-72-2000-B-EC

2000 Nm

Bi-Directional, Shut-Off

External Control, 1"

400.0 - 2000.0 Nm

295.0 - 1475.0 ft. lbs

18129.B08 -

PTM-72-2000-B-IC

2000 Nm Bi-Directional

Angle Control, 1"

295.00 - 1475.00 ft. lbs

400.00 - 2000.00 N·m
