Professional 650 - 1500 P Type Series Ratchet

Non length dependent. Extension handle can be used to reduce operator effort (handle supplied as standard with Model 800, 1000 and 1500).

Positive 'click' can be heard, seen and felt.  Low weight - Model 1000 just 5.8 kg.  Fine 60 tooth ratchet allows the wrench to be used in confined areas.

All models are also available as adjustable wrenches.

The Model 650 is also available as a Torque Handle with a 22mm Spigot or 14 x 18mm Female end to take various size end fittings.

14039 - Model 650 P 3/4" 14017 - Model 800 P 3/4" 14018 - Model 800 P 1" 14007 - Model 1000 P 3/4"

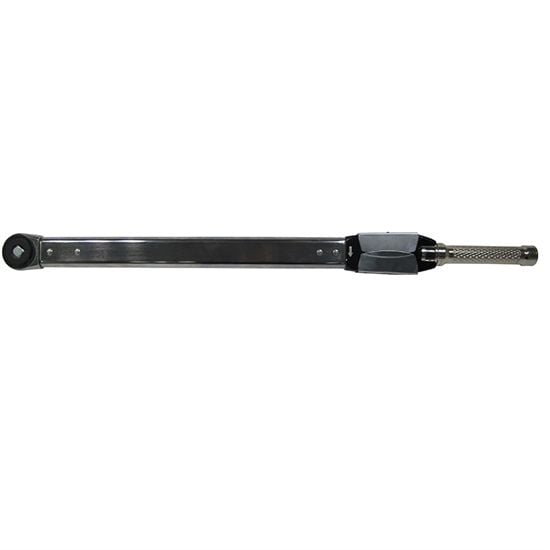

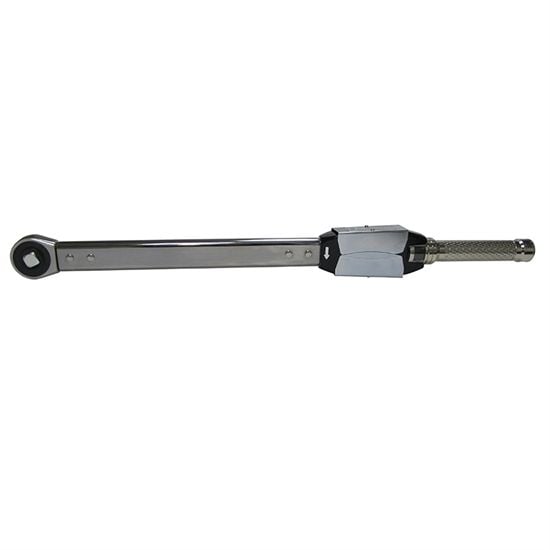

14039 - Model 650 P 3/4"

130.0 - 650.0 Nm

100.0 - 480.0 ft. lbs

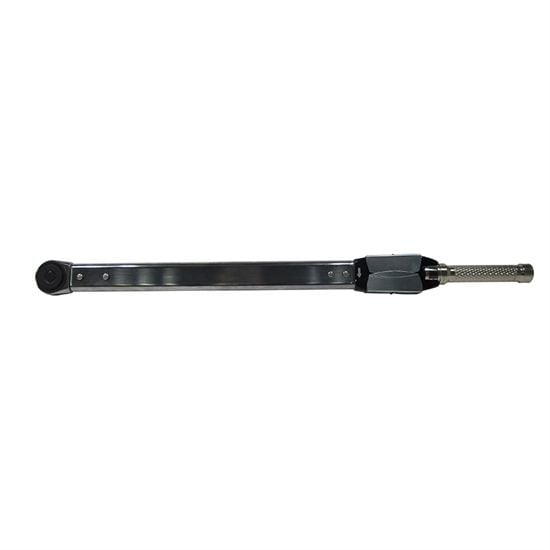

14017 - Model 800 P 3/4"

1800.0 - 7200.0 in. lbs

150.0 - 600.0 ft. lbs

200.0 - 800.0 Nm

20.0 - 80.0 kgf·m

14018 - Model 800 P 1"

1800.0 - 7200.0 in. lbs

150.0 - 600.0 ft. lbs

200.0 - 800.0 Nm

20.0 - 80.0 kgf·m

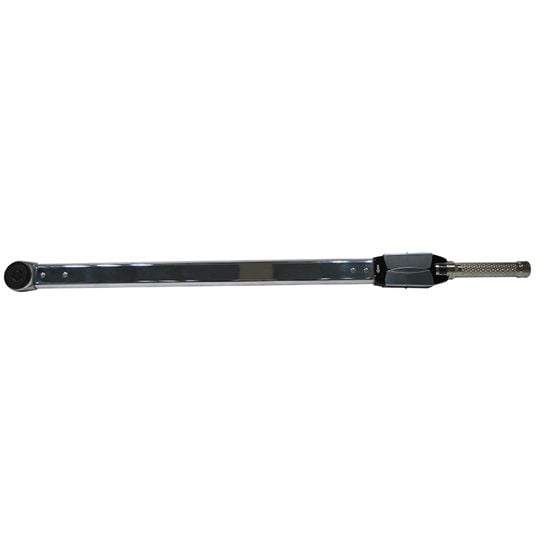

14007 - Model 1000 P 3/4"

2600.0 - 9000.0 in. lbs

220.0 - 750.0 ft. lbs

300.0 - 1000.0 Nm

30.0 - 100.0 kgf·m


14008 - Model 1000 P 1" 14009 - Model 1500 P 3/4" 14010 - Model 1500 P 1"

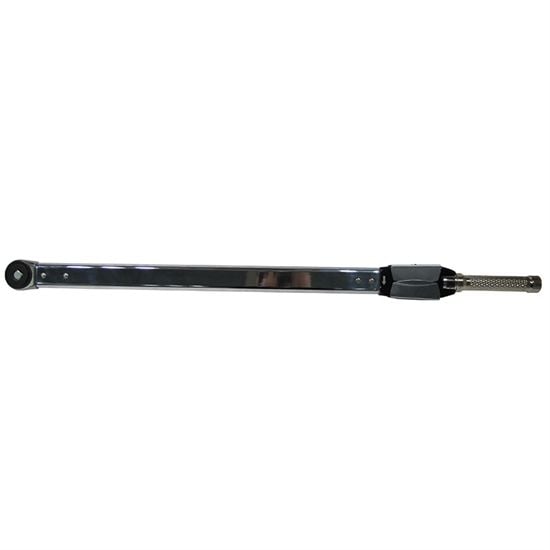

14008 - Model 1000 P 1"

2600.0 - 9000.0 in. lbs

220.0 - 750.0 ft. lbs

300.0 - 1000.0 Nm

30.0 - 100.0 kgf·m

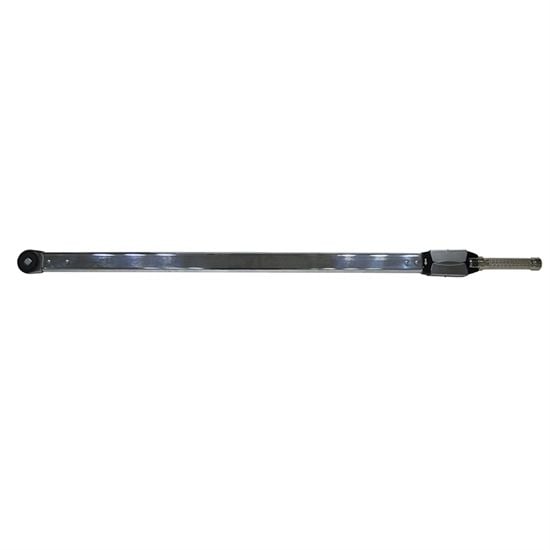

14009 - Model 1500 P 3/4"

4400.0 - 13200.0 in. lbs

370.0 - 1100.0 ft. lbs

500.0 - 1500.0 Nm

50.0 - 150.0 kgf·m

14010 - Model 1500 P 1"

4400.0 - 13200.0 in. lbs

370.0 - 1100.0 ft. lbs

500.0 - 1500.0 Nm

50.0 - 150.0 kgf·m
