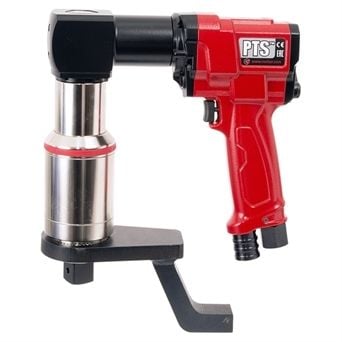

PTS-72 Series with Right Angle Gearbox, 2000 Nm
Thumbnail

PTS-72 Series with Right Angle Gearbox, 2000 Nm

Item Code: 180245.B08.RA

PTS-72 Series with Right Angle Gearbox, 2000 Nm, 400 - 2000 Nm / 295 - 1475 ft. lbs

The PTS is the result of an extensive design project to produce an efficient air motor, purpose built for this application in an accurate torque tool. The new air motor is then married to Norbar's respected gearbox range, sharing common torque reaction accessories with PTM and EvoTorque® tools.

  • Designed to offer excellent power-to-weight ratio
  • Up to 2.5kg weight saving compared with PT equivalents
  • Easily accessible switch for forward and reverse operation
  • ±5% repeatability of reading from 20% to 100% of range
  • Air coupling designed for safety and rapid operation
  • Directional exhaust barrel directs exhaust away from operator
  • Replaceable square drive
  • Fast operation for rapid bolt rundown. Up to 60% faster than PT-72 model
  • Non impacting - low vibration levels for comfortable and safe use
  • Steel reactions supplied as standard. Bespoke reactions available
  • Very quiet operation - reducing the need for protection with sound pressure levels from 77dB(A) to 79dB(A)
  • Allows more comfortable operation of the PTS on vertically bolting applications at chest height and above as the pistol grip is presented correctly to the operator
  • The tool handle can rotate 360° in relation to the Right Angle Gearbox allowing the most comfortable and safest position to be found
