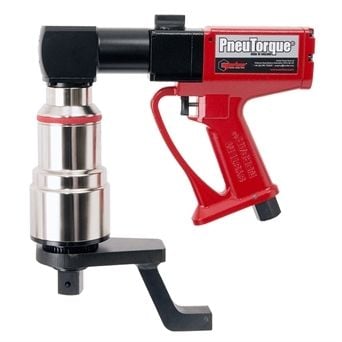

PTM-92 1 1/2" sq drive with Right Angle Gearbox
Thumbnail

PTM-92 1 1/2" sq drive with Right Angle Gearbox

Item Code: 18159.B12.RA

PTM-92 1 1/2" sq drive with Right Angle Gearbox, 800 - 4000 Nm / 590 - 2950 ft. lbs

The latest extension to the PTM tool range brings the speed advantage to the twin motor handle to higher capacity PneuTorque models.

The Right Angle Gearbox enables the benefits of Norbar's electronic torque tools to be brought to a host of applications from which they are currently excluded due to space restrictions.

Coupled with new gearbox designs, these new models deliver an ideal balance between robustness, speed and weight.

  • Quiet - less than 85 dB(A) when under load.
  • Non impacting - low vibration levels make these tools comfortable and safe to use.
  • Square drive is quickly and easily replaceable.
  • 'Soft Start' trigger controls / aids socket location and allows gradual and safe reaction location.
  • For safety, gearbox can rotate independently from the handle so that reaction forces are not transmitted back to the operator.
  • On Bi-Directional tools, the direction control knob is locked while the tool is running to prevent accidental damage to the gearbox.
  • Light weight - PTM-92-4000 weighs just 8.5kg. All models are fitted as standard with a light but robust aluminium reaction plate.
  • Other reaction styles are available for maximum versatility.
  • Allows more comfortable operation of the PTM on vertically bolting applications at chest height and above as the pistol grip is presented correctly to the operator
  • The tool handle can rotate 360° in relation to the Right Angle Gearbox allowing the most comfortable and safest position to be found
